rotating hose reel

Rotating Hose Reel

Product Category
Applications

The unit cleans both horizontal and vertical pipes. The rotary action causes the nozzle holder to rotate and achieve optimal cleaning efficiency.

Features

Hammelmann Rotating Hose Reel Features

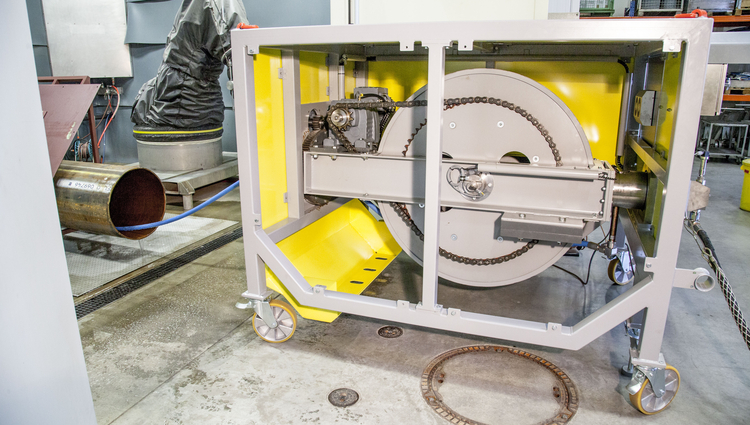

The mobile unit comprises a powered hose reel and rotational drive.  The flexible hose is rotated by the reel turning on its central axis and wound off and on hydraulically.  The hose travels through the pipe helped by the reaction force of the rear facing jets.

When cleaning vertical pipes (top to bottom only) a brake is used to control deployment.

Op pressure: 1600 bar - 3000 bar
Hose i/d: 12 or 20 mm
Hose length: max. 100 m

Nozzle holders

We produce a wide variety of nozzle holders for use with the rotating hose reel or hose rotating system (Pipemaster).

rotating hose reel

Rotating Hose Reel

The unit cleans both horizontal and vertical pipes. The rotary action causes the nozzle holder to rotate and achieve optimal cleaning efficiency.
