3d pipe cleaners

3D Pipe Cleaners

Product Category
Applications

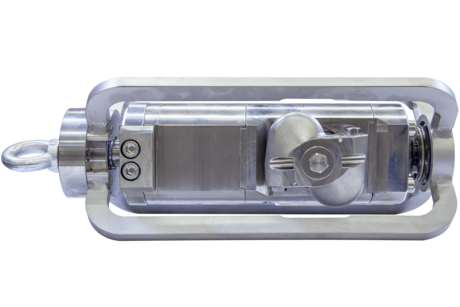

3D pipe cleaners are basically tank cleaning units mounted in sledge type guides for pipe cleaning. They are used for removing particularly hard scale deposits. Operating on two axes with a kick plate they automatically move through the pipe as the scale is blasted loose. Alternatively, where access is available they can be pulled through the pipe.

Features

Type L 1200-2

  • 18 mm S arm, 2 nozzles
  • Op. pressure max. 1200 bar
  • Flow rate: 150 l/min
  • Minimum pipe i/d: 200 mm

Type XL 1500-2

  • 35 mm S arm, 2 nozzles
  • Op. pressure max. 1500 bar
  • Flow rate: 250 l/min
  • Minimum pipe i/d: 320 mm
3d pipe cleaners

3D Pipe Cleaners

3D pipe cleaners are basically tank cleaning units mounted in sledge type guides for pipe cleaning. They are used for removing particularly hard scale deposits. Operating on two axes with a kick plate they automatically move through the pipe as the scale is blasted loose. Alternatively, where access is available they can be pulled through the pipe.
